Additel 103

Pressure Hoses, Adapters and Fittings

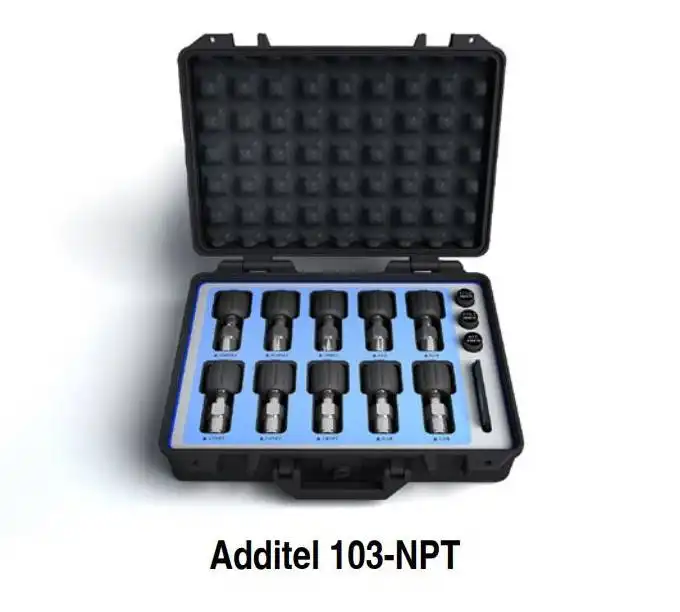

  • ADT103-NPT - 1/4" NPT male to various female hand-tight quick connectors (10 pc).

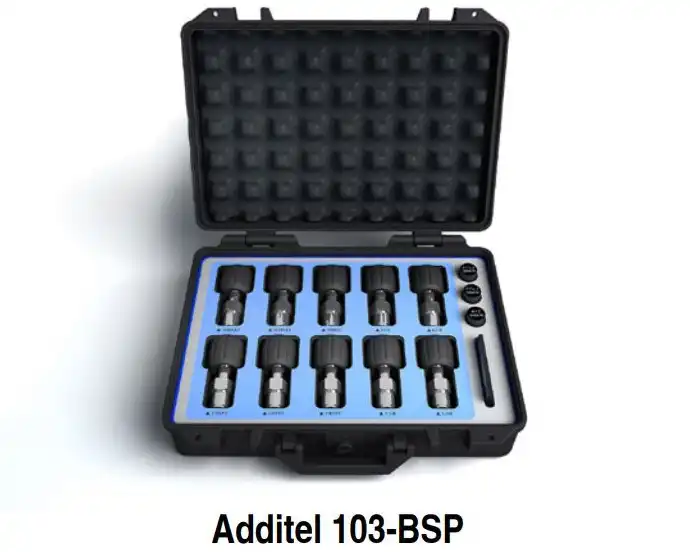

  • ADT103-BSP - 1/4"BSP male to various female hand-tight quick connectors (10 pc).
  • ADT103-M20 - M20X1.5 male to various female hand-tight quick connectors (10 pc).
  • Designed for all pumps except Additel 949 pump
  • Can be ordered as an entire kit or as individual parts (see datasheet)

heyy


ADT103

1/4NPT male to various hand-tight quick connectors as follows (10 pcs, case included)

Carrying Case for AdaptersModelDescriptionMax PressurePicture of Adapter

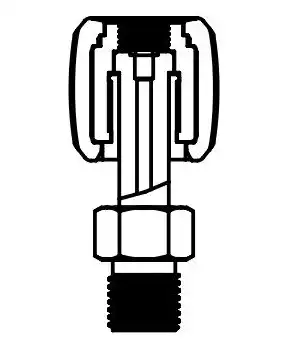

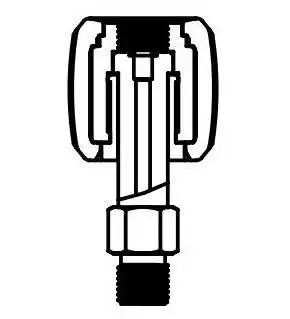

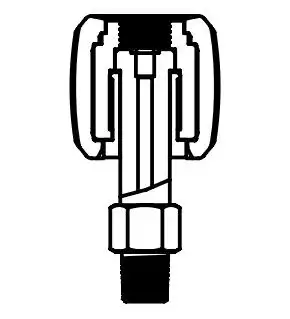

ADT100-NPTM4-NPTF8QAdapters, 1/4NPT male to 1/8NPT female15,000 psi
ADT100-NPTM4-NPTF4QAdapters, 1/4NPT male to 1/4NPT female15,000 psi
ADT100-NPTM4-NPTF2QAdapters, 1/4NPT male to 1/2NPT female15,000 psi
ADT100-NPTM4-BSPF8QAdapters, 1/4NPT male to 1/8BSP female15,000 psi
ADT100-NPTM4-BSPF4QAdapters, 1/4NPT male to 1/4BSP female15,000 psi
ADT100-NPTM4-BSPF3QAdapters, 1/4NPT male to 3/8BSP female15,000 psi
ADT100-NPTM4-BSPF2QAdapters, 1/4NPT male to 1/2BSP female15,000 psi
ADT100-NPTM4-M10FQAdapters, 1/4NPT male to M10×1.0 female15,000 psi
ADT100-NPTM4-M14FQAdapters, 1/4NPT male to M14×1.5 female15,000 psi
ADT100-NPTM4-M20FQAdapters, 1/4NPT male to M20x1.5 female15,000 psi
ADT100-BSPM4-NPTF8QAdapter, 1/4BSP male to 1/8NPT female15,000 psi
ADT100-BSPM4-NPTF4QAdapter, 1/4BSP male to 1/4NPT female15,000 psi
ADT100-BSPM4-NPTF2QAdapter, 1/4BSP male to 1/2NPT female15,000 psi
ADT100-BSPM4-BSPF8QAdapters, 1/4BSP male to 1/8BSP female15,000 psi
ADT100-BSPM4-BSPF4QAdapters, 1/4BSP male to 1/4BSP female15,000 psi
ADT100-BSPM4-BSPF3QAdapters, 1/4BSP male to 3/8BSP female15,000 psi
ADT100-BSPM4-BSPF2QAdapters, 1/4BSP male to 1/2BSP female15,000 psi
ADT100-BSPM4-M10FQAdapters, 1/4BSP male to M10×1.0 female15,000 psi
ADT100-BSPM4-M14FQAdapters, 1/4BSP male to M14×1.5 female15,000 psi
ADT100-BSPM4-M20FQAdapters, 1/4BSP male to M20x1.5 female15,000 psi
ADT100-M20M-NPTF8QAdapters, M20×1.5 Male to 1/8NPT female15,000 psi
ADT100-M20M-NPTF4QAdapters, M20×1.5 Male to 1/4NPT female15,000 psi
ADT100-M20M-NPTF2QAdapters, M20×1.5 Male to 1/2NPT female15,000 psi
ADT100-M20M-BSPF8QAdapters, M20×1.5 Male to 1/8BSP female15,000 psi
ADT100-M20M-BSPF4QAdapters, M20×1.5 Male to 1/4BSP female15,000 psi
ADT100-M20M-BSPF3QAdapters, M20×1.5 Male to 3/8BSP female15,000 psi
ADT100-M20M-BSPF2QAdapters, M20×1.5 Male to 1/2BSP female15,000 psi
ADT100-M20M-M10FQAdapters, M20×1.5 Male to M10×1.0 female15,000 psi
ADT100-M20M-M14FQAdapters, M20×1.5 Male to M14×1.5 female15,000 psi
ADT100-M20M-M20FQAdapters, M20×1.5 Male to M20×1.5 female15,000 psi

Don't need the entire kit? Order individual adapters with the above part numbers
