Additel 104-HP

Pressure Hoses, Adapters and Fittings

  • 1/4HP male (Autoclave M-250-C) to various connectors
  • Designed for Additel 949, 959, and 960 pumps
  • Can be ordered as an entire kit or as individual parts (see datasheet)

heyy


ADT104

1/4HP male (Autoclave M-250-C) to various connectors as follows (17pcs, case included)

(Designed for Additel 949 and Additel 959 pumps)

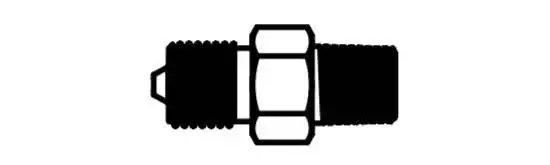

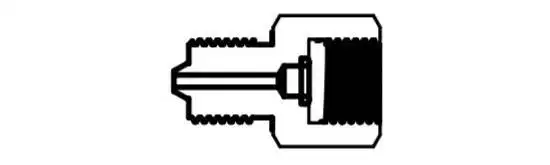

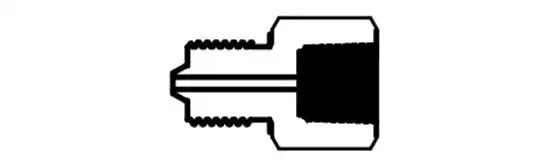

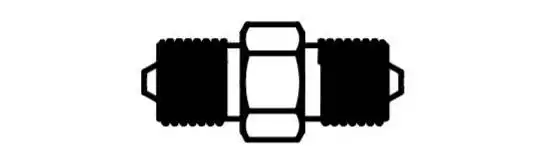

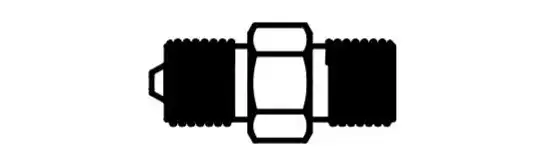

ModelDescriptionMax PressurePicture of Adapter
ADT100-HPM-M14FAdapter, 1/4HP male to M14X1.5 female15,000 psi
ADT100-HPM-M20FAdapter, 1/4HP male to M20X1.5 female15,000 psi
ADT100-HPM-BSPF4Adapter, 1/4HP male to 1/4BSP female15,000 psi
ADT100-HPM-BSPF3Adapter, 1/4HP male to 3/8BSP female15,000 psi
ADT100-HPM-BSPF2Adapter, 1/4HP male to 1/2BSP female15,000 psi
ADT100-HPM-NPTF4Adapter, 1/4HP male to 1/4NPT female15,000 psi
ADT100-HPM-NPTF2Adapter, 1/4HP male to 1/2NPT female15,000 psi
ADT100-HPM-M14MAdapter, 1/4HP male to M14X1.5 male40,000 psi
ADT100-HPM-M20MAdapter, 1/4HP male to M20X1.5 male40,000 psi
ADT100-HPM-BSPM4Adapter, 1/4HP male to 1/4BSP male15,000 psi
ADT100-HPM-BSPM3Adapter, 1/4HP male to 3/8BSP male40,000 psi
ADT100-HPM-BSPM2Adapter, 1/4HP male to 1/2BSP male40,000 psi
ADT100-HPM-NPTM4Adapter, 1/4HP male to 1/4NPT male15,000 psi
ADT100-HPM-NPTM2Adapter, 1/4HP male to 1/2NPT male15,000 psi
ADT100-HPM-HPMAdapter, 1/4HP male to 1/4HP male (3 pcs)60,000 psi

Don't need the entire kit? Order individual adapters with the above part numbers
