Additel 282
Dual-Channel Reference Thermometer Readout
- Accuracy to 0.006 °C at 0 °C
- Reference Level Accuracies
- Dual Measurement Channels
- RTD and TC Inputs
- Smart Style Probe Connections
- Large Smartphone Like Touchscreen
- Differential Measurement Technology
- Bluetooth & USB Communications
- Built-in Sensor Library
- Datalogging
- IP67 Rated
- Rugged Handheld Construction
- Rechargeable Lithium Battery

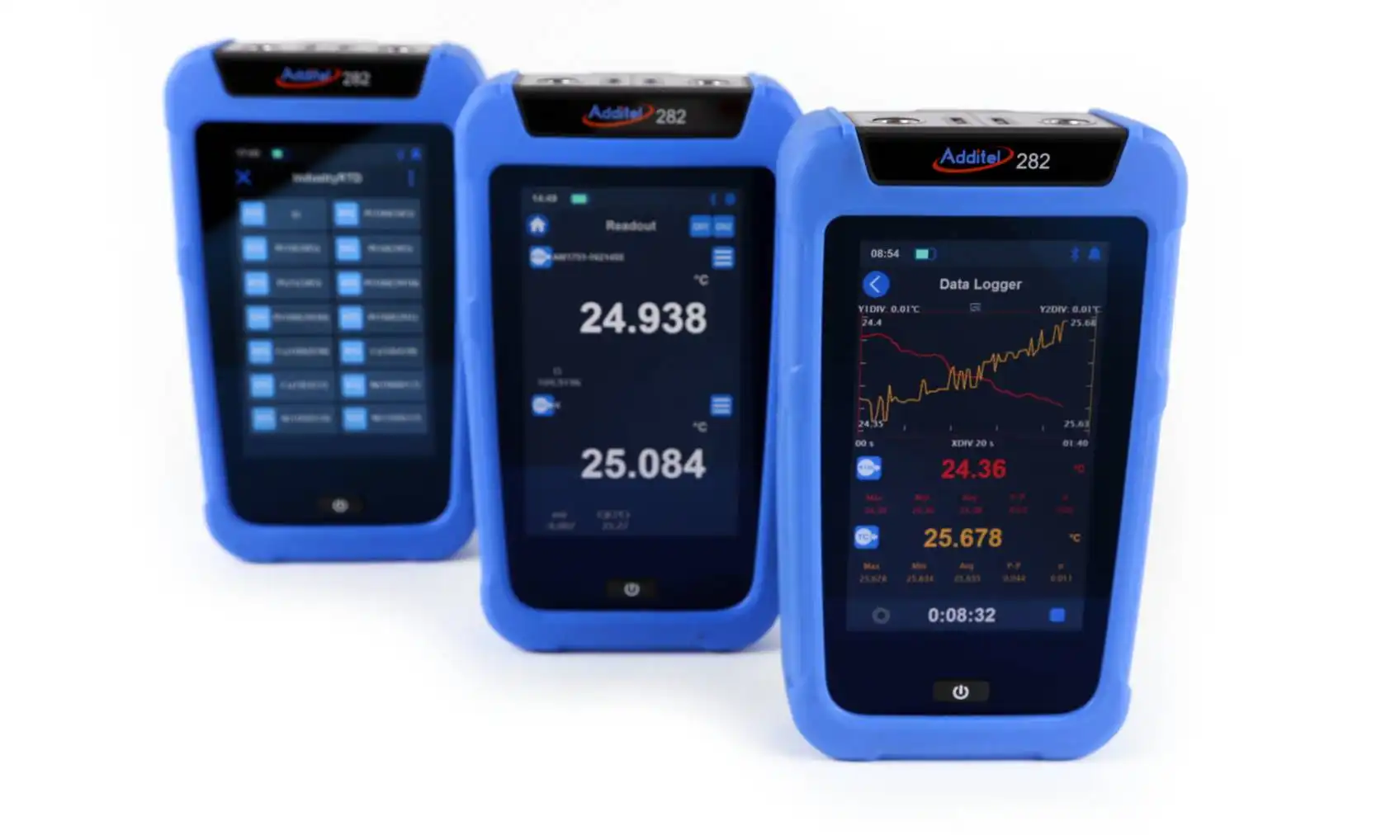

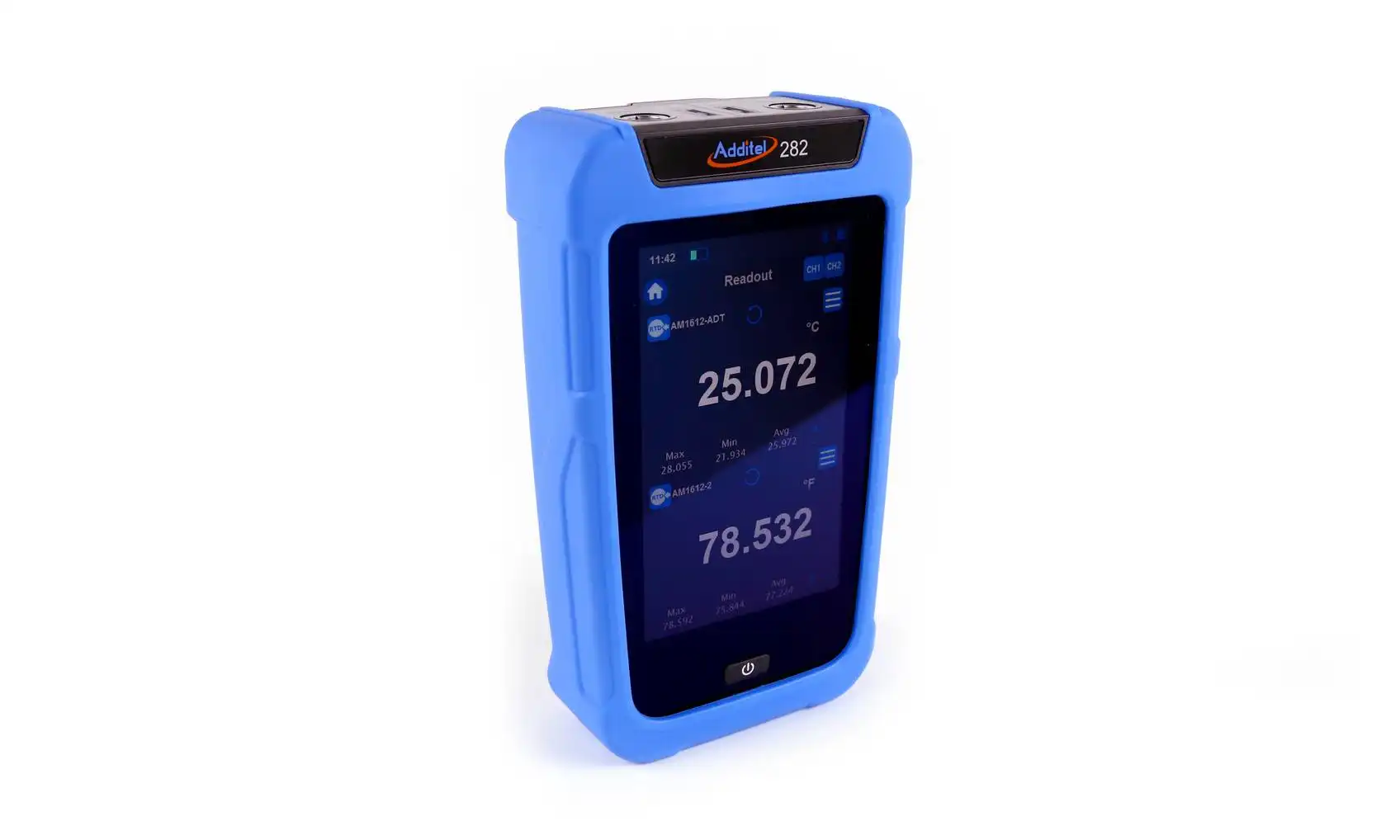

Additel’s 282 Reference Thermometer Readout delivers the best possible accuracies and features in the palm of your hand! With accuracy capabilities on par with laboratory grade thermometers, the ADT282 is capable of handling even your most critical measurements. This ultra-high precision readout features dual analog channels designed to facilitate comparison measurements and meet all of your temperature measurement needs. The easy to use touchscreen makes navigating the well-designed menus a time saving and enjoyable experience. The Lemo style smart connectors help to ensure that your probe calibration information is never in question. The ADT282 Reference Thermometer Readout helps makes metrology simple and will quickly become your new go-to when reliable temperature measurements are a must.
| Description | Picture of the 282 in Action / Screenshot of one of the 282's Applications |
|---|---|
| 1mk temperature resolution, 0.1mΩ/0.1uV electrical measurement resolution |  |

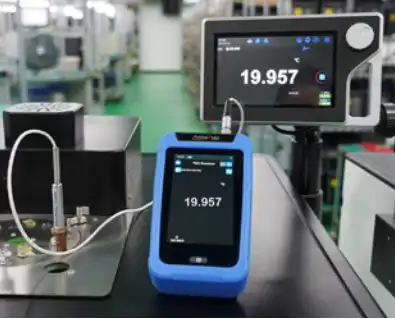

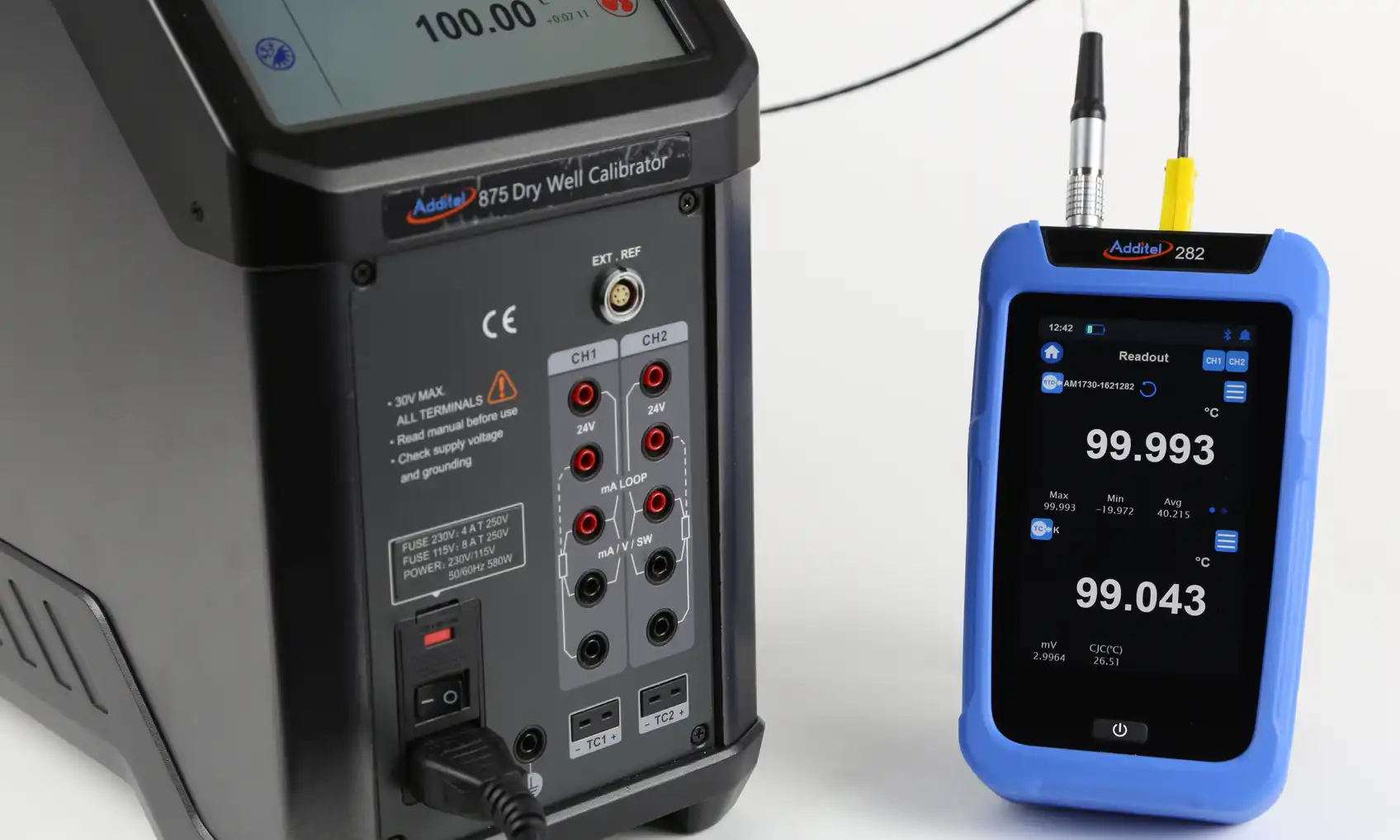

| Reliable temperature metrology requires a stable repeatable measurement device. The ADT282 supports stability and uniformity testing of liquid temperature baths, thermocouple calibration furnaces, and dry well calibrators. The highly accurate dual channels of the ADT282 support deviation and uniformity studies. A very capable standard is required for the measurement resolution of the thermometer readout in these situations. The ADT282's superior measurement performance and dual-channel configuration easily meet these measurement needs | |

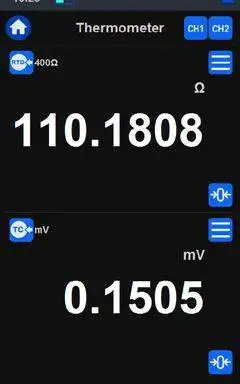

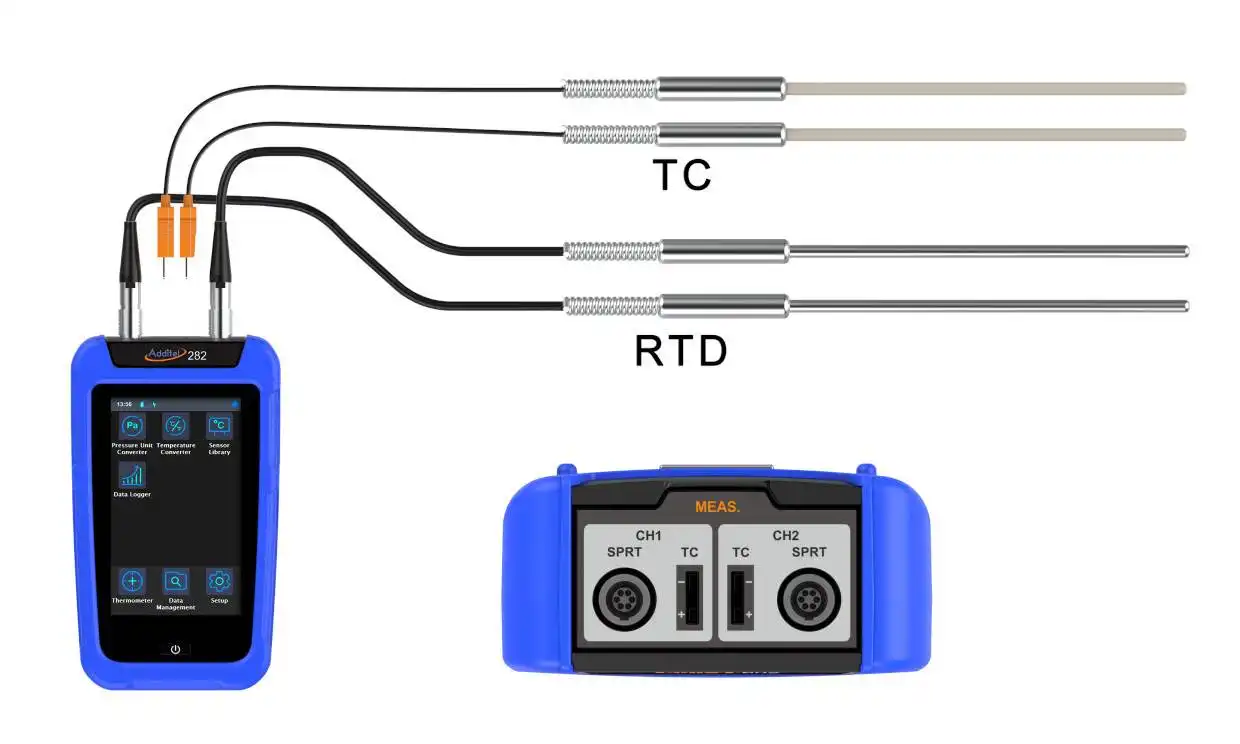

| Dual Channels |  |
| The model ADT282 includes dual inputs which provide support for a multitude of resistive type sensors (RTD’s) as well as thermocouples (TC’s). Both channels can be displayed simultaneously which allows for comparison measurements and a host of other statistical analysis capabilities. And the Additel 282 allows for easy differential measurement selection for T1-T2. | |
| Reference Measurement Technology |  |
| Additel’s 282 Reference Thermometer Readout utilizes a ratio measurement technology which provides an unmatched performance in stability and drift. In order to ensure a very small temperature drift coefficient and reliable long-term stability, the ADT282 uses current reversal techniques to cancel EMF effects and a ratio technology to cancel the A/D converter offset. This highly advanced technology has not been available in a handheld device until now! | |

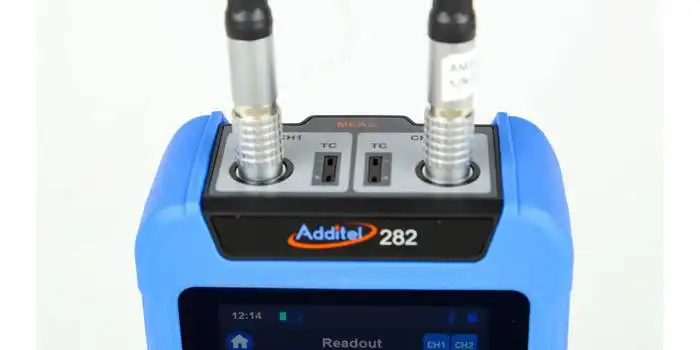

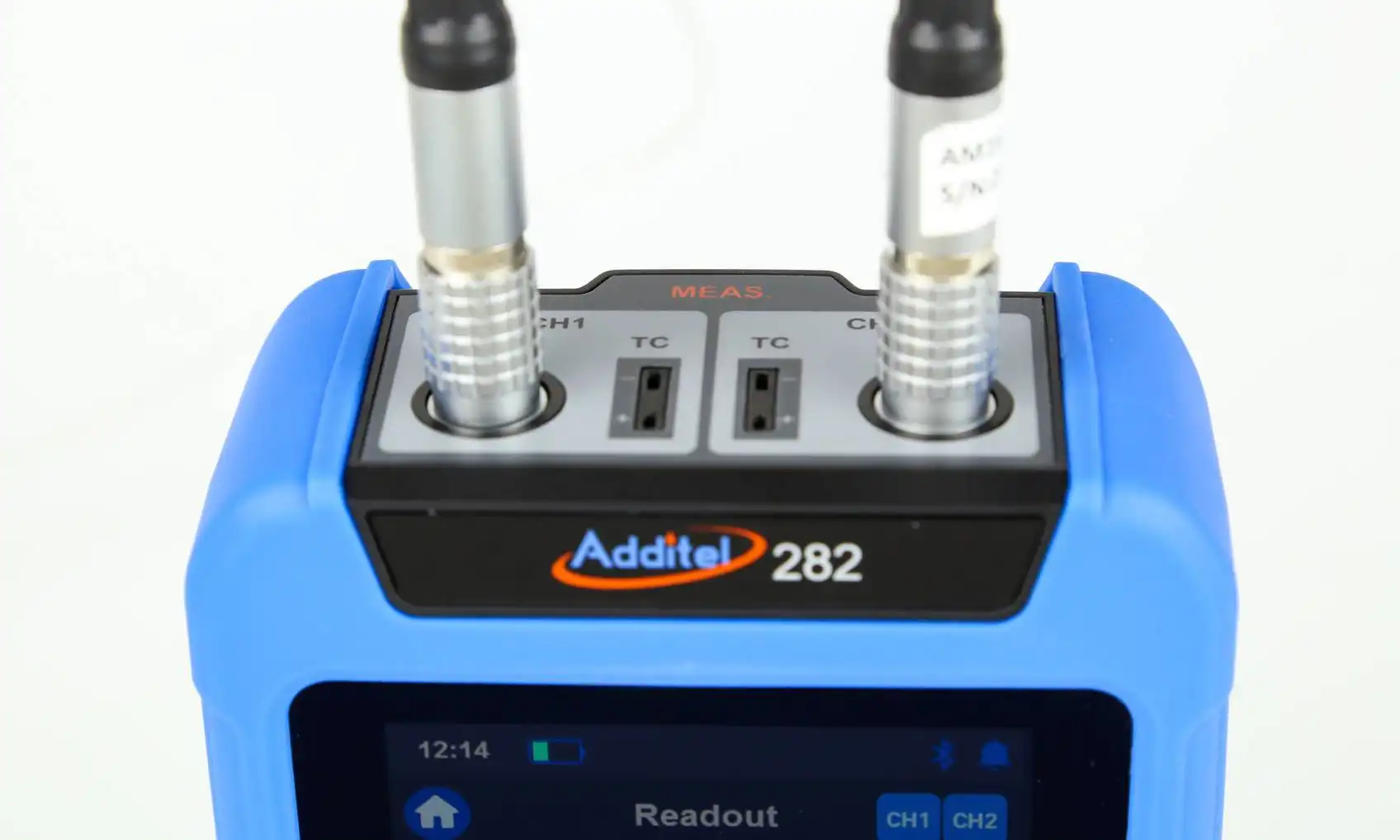

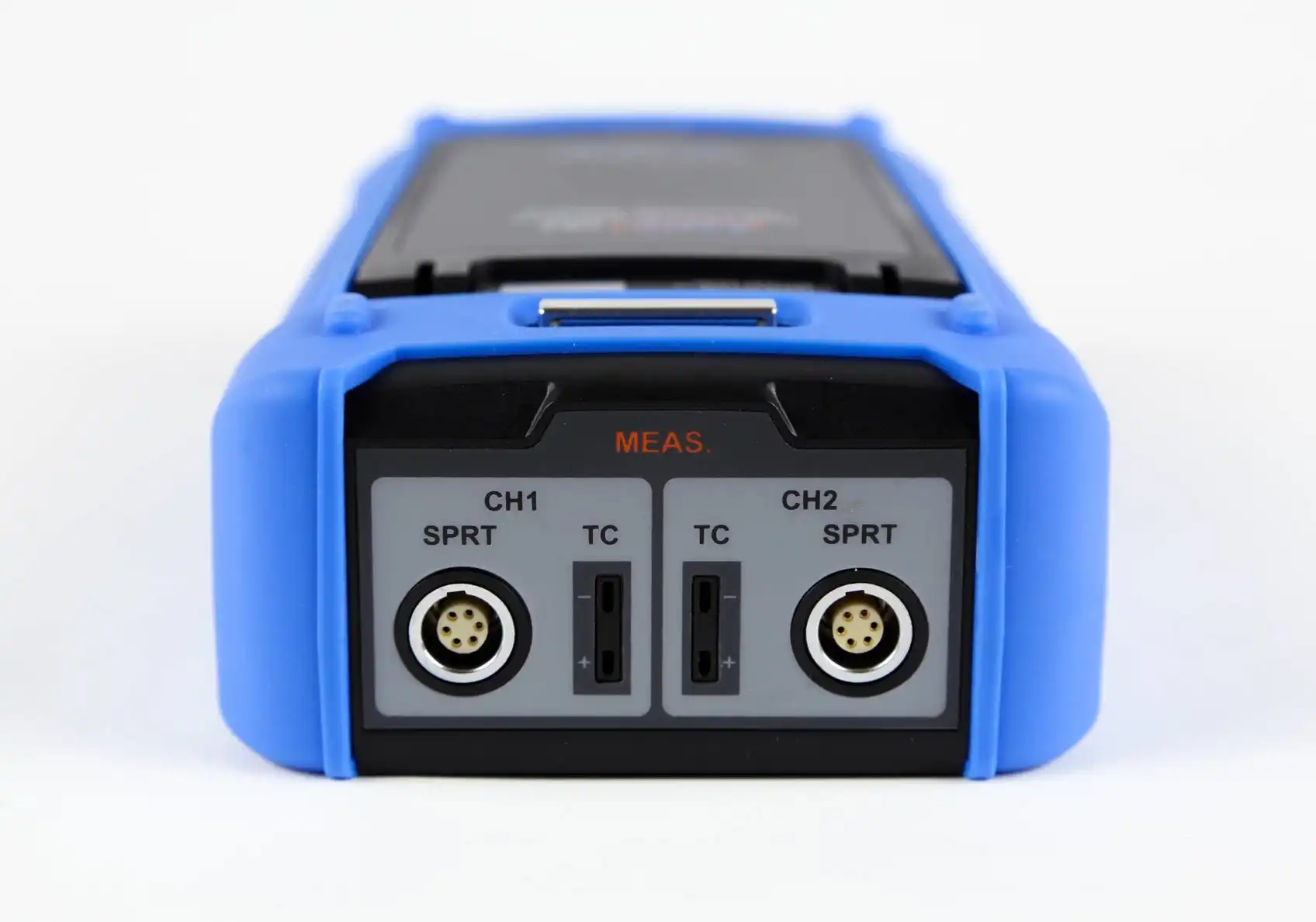

| Smart Style Probe Connections |  |
| In order to facilitate quick and reliable probe connections, the ADT282 has been configured with smart connection ports for probes. Both channels atop the reference readout utilize 6 pin Lemo style smart connectors for RTD probes and mini-TC ports for thermocouple probes. The thermocouple connection points utilize an imbedded temperature sensor which allows for both internal and external cold junction compensation.With the smart probe connectors, the ADT282 utilizes a user-selectable probe lock feature to pair the probe with the channel it was calibrated with in a system calibration. | |
| One Touch Control Center |  |
| In order to improve the user's experience and speed of use, we have designed a single touch menu option that navigates users to a control center panel. The functions from the control panel include: Date, Battery status, Screen lock, Bluetooth on/off, Speaker on/off, Snapshot, Smart diagnosis center button. | |

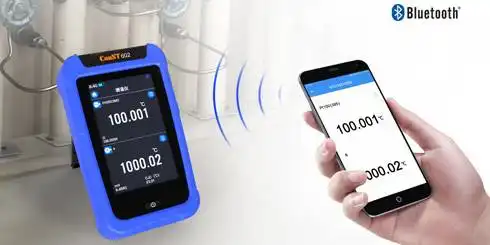

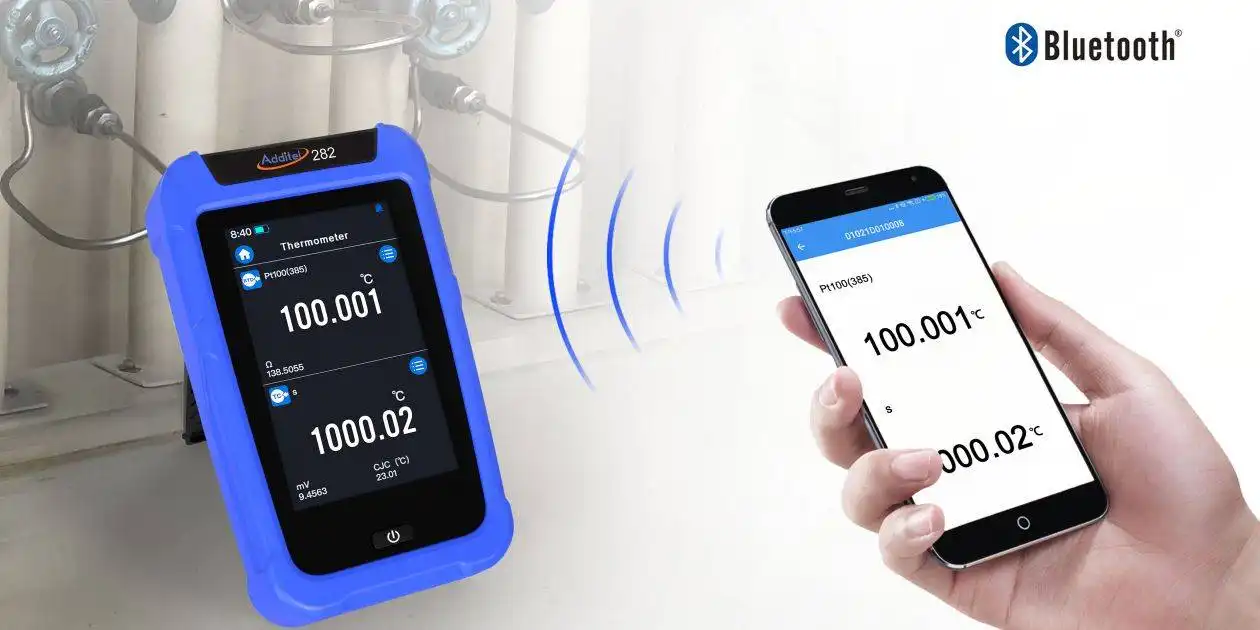

| Bluetooth |  |
| The ADT282 comes with standard Bluetooth communications capabilities and is supported by Additel’s Mobile Link App. This very useful feature will change the way you work as it provides a remote view of the ADT282 display at a distance, up to 20 meters on your personal mobile device. | |

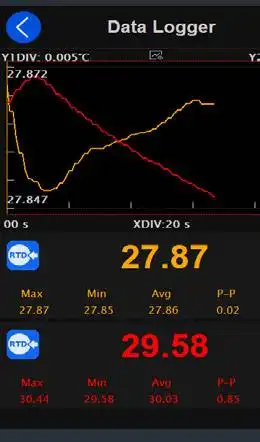

| Datalogging |  |
| Temperature sensors and instruments used in the field often require regular calibration. In many cases, the disassembly of equipment can impact productivity. Fixed sensors can be tested in process utilizing the ADT282 datalogging capabilities. In order to accurately monitor temperature changes, this process may take several minutes or even hours to complete. ADT282 has builtin powerful data logging function and supports multi-parameters data recording, trend curve display, partial curve observation, statistical result viewing, data storage capacity up to 8G to help with these applications. | |

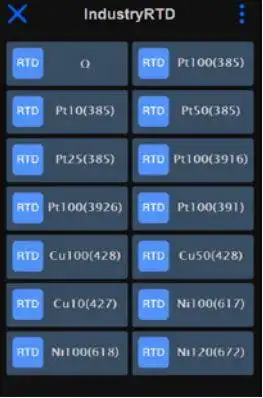

| Sensor Library |  |
| The ADT282 has an extensive built-in temperature sensor library, including ITS-90, CVD, Standard TC,13 types of industrial RTDs and 15 types of industrial thermocouples, and also supports sensor customization. The user can also edit the probe coefficients according to the ITS-90, CVD formulas and the R0 parameter of the industrial RTDs. The extensive probe library capabilities also support coefficient input methods for standard thermocouple types. |
| Technical Specifications | |
|---|---|
| Display | 5.0 inch 480 x 800 TFT LCD capacitive screen |
| Size | 16.97" x 4.13" x 2.04" (177 mm x 105 mm x 52 mm) |
| Weight | 1.5 lbs. (0.65 Kg) |
| Power Supply | 6600mAh, 23.8Wh lithium battery, charging time 4~6 hours, battery pack can be charged independent. Battery life typically 16 hours |
| Environment | Specification guaranteed temperature range: (10~30) °C |
| Working Temperature: (-10~50) °C | |
| Storage temperature: (-20~70) °C | |
| Humidity: 0% ~ 95% RH, non-condensing | |
| Warm-Up Time | 10 minutes |
| Ports Protection Voltage | 50V max |
| CE Certificate | TUV IEC61326,IEC61010 |
| Rohs Compliance | Rohs II Directive 2011/65/EU,EN50581:2012 |
| IP Protection Level | IP67, 1 meter drop test |
| Communication | Isolate USB-TYPEC (slave), Bluetooth BLE |
| Input Channels | CH1, CH2 analog channel, 6 pins smart lemo ports for RTD probe;MINI-TC ports for TC probe |
| Measurement Display | Single channel, dual channel, differential (e.g T1-T2) |
| Measuring Rates | CH1, CH2 analog channels alternately and cyclically measure |
| RTD measuring rate: 1.6S/single channel, 1.6S/dual channel | |
| TC measuring rate: 0.8S/single channel, 0.8S/dual channel | |
| Measurement Units | °C, °F, K |
| Statistics | Max, Min, Avg |
| Measurement Specifications | ||
|---|---|---|
| PRT Measurement | RTD Types | ITS-90, CVD, Ohms, Pt100 (385), Pt10 (385), Pt25 (385), Pt50 (385), Pt100 (3916), Pt100 (3926), Pt100 (391), Cu100 (428), Cu50 (428), Cu10 (427), Ni100 (617), Ni100 (618), Ni120 (672), and custom RTD |
| Resistance Accuracy | 0~400Ω: ±0.5mΩ@(0~20Ω),±25ppm@(20~400Ω) | |
| Measurement range | -200°C ~ 850°C | |
| Resolution | ±0.1mΩ or 0.001°C | |
| Connection Type | 4-wire smart connection | |
| Excitation Current | 1 mA - alternating constant current | |
| Temperature Coefficient | ±2ppm FS/°C (-10°C~10°C and 30°C~50°C) | |
| TC Measurement | TC Types | mV, S, R, B, K, N, E, J, T, C, D, G, L, U, LR, A, 10uV/°C, 1mV/°C, Standard TC |
| Electrical Measurement | -10~75mV: 50ppm RDG+2uV | |
| TC measurement range | -270°C ~ 1800°C | |
| Resolution | ±0.1uV or 0.001°C | |
| Connection Type | Mini-TC | |
| CJC compensation methods | Internal, external or manual entry | |
| Temperature Coefficient | ±5ppm FS/°C (-10°C~10°C and 30°C~50°C) | |
| Internal CJC Specification | ±0.15°C (-10°C~50°C) | |
| Accuracy (°C) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| T, °C | Rx,Ω | ADT282 readout only (°C) | Readout with selected Probe Accuracy (oC)* | |||||||
| AM1760 | AM1751 | AM1730 | AM1640 | AM1660 | AM1710 | AM1612-2 | AM1612-1 | |||
| -200 | 18 | 0.005 | 0.013 | 0.021 | 0.021 | 0.053 | 0.053 | n/a | 0.072 | n/a |
| -40 | 84 | 0.005 | 0.013 | 0.018 | 0.018 | 0.042 | 0.042 | 0.018 | 0.051 | 0.051 |
| 0 | 100 | 0.006 | 0.009 | 0.014 | 0.014 | 0.036 | 0.036 | 0.014 | 0.051 | 0.051 |
| 100 | 140 | 0.009 | [1] | [1] | [1] | [1] | [1] | 0.019 | 0.051 | 0.051 |
| 160 | 163 | 0.011 | [1] | [1] | [1] | [1] | [1] | 0.023 | 0.052 | 0.052 |
| 232 | 190 | 0.013 | 0.019 | 0.024 | 0.024 | 0.059 | 0.059 | n/a | n/a | n/a |
| 420 | 257 | 0.018 | 0.027 | 0.033 | 0.033 | 0.077 | 0.077 | n/a | n/a | n/a |
| 660 | 338 | 0.026 | 0.04 | 0.046 | n/a | n/a | 0.109 | n/a | n/a | n/a |
| Note: [1] – These are non-standard calibration points, some probes are not calibrated at 100°C and/or 160°C. | ||||||||||
| * Includes readout accuracy, probe calibration, and probe drift. (K=2) | ||||||||||
| Thermocouple Measurement (Environment Temperature: 20±10° C) | ||||
|---|---|---|---|---|
| Type | Temperature Range (°C) | Accuracy (°C) External CJC compensation (1 year) | Accuracy (°C) Internal CJC compensation (1 year) | |
| S | -50 to 1768 | -50~0 | 0.51 | 0.53 |
| 0~100 | 0.37 | 0.4 | ||
| 100~1768 | 0.28 | 0.32 | ||
| R | -50 to 1768 | -50~0 | 0.54 | 0.56 |
| 0~200 | 0.38 | 0.41 | ||
| 200~1768 | 0.25 | 0.29 | ||
| B | 0 to 1820 | 200~300 | 1.01 | 1.02 |
| 300~500 | 0.66 | 0.68 | ||
| 500~800 | 0.41 | 0.44 | ||
| 800~1820 | 0.28 | 0.32 | ||
| K | -270 to 1372 | -250 to -200 | 0.48 | 0.5 |
| -200 to -100 | 0.15 | 0.21 | ||
| -100 to 600 | 0.08 | 0.17 | ||
| 600 to 1372 | 0.14 | 0.21 | ||
| N | -270 to 1300 | -250 to -200 | 0.76 | 0.77 |
| -200 to -100 | 0.22 | 0.27 | ||
| -100 to 1300 | 0.12 | 0.19 | ||
| E | -270 to 1000 | -250~-200 | 0.26 | 0.3 |
| -200~-100 | 0.1 | 0.18 | ||
| -100~700 | 0.06 | 0.16 | ||
| 700~1000 | 0.08 | 0.17 | ||
| J | -210~1200 | -210~-100 | 0.13 | 0.2 |
| -100~700 | 0.06 | 0.16 | ||
| 700~1200 | 0.1 | 0.18 | ||
| T | -270 to 400 | -250~-100 | 0.36 | 0.39 |
| -100~0 | 0.08 | 0.17 | ||
| 0~400 | 0.05 | 0.16 | ||
| C | 0 to 2315 | 0 to 1000 | 0.16 | 0.22 |
| 1000 to 1800 | 0.26 | 0.3 | ||
| 1800 to 2315 | 0.42 | 0.45 | ||
| D | 0~2315 | 0~100 | 0.21 | 0.26 |
| 100~1200 | 0.16 | 0.22 | ||
| 1200~2000 | 0.27 | 0.31 | ||
| 2000~2315 | 0.42 | 0.45 | ||
| G | 0 to 2315 | 50~100 | 0.6 | 0.62 |
| 100~200 | 0.38 | 0.41 | ||
| 200~400 | 0.24 | 0.28 | ||
| 400~1500 | 0.16 | 0.22 | ||
| 1500~2315 | 0.32 | 0.35 | ||
| L | -200 to 900 | -200 to -100 | 0.07 | 0.17 |
| -100 to 400 | 0.06 | 0.16 | ||
| 400 to 900 | 0.07 | 0.17 | ||
| U | -200 to 600 | -200 to 0 | 0.14 | 0.21 |
| 0 to 600 | 0.05 | 0.16 | ||
| LR | -200~800 | -200~0 | 0.09 | 0.17 |
| 0~800 | 0.06 | 0.16 | ||
| A | 0~2500 | 0~1200 | 0.2 | 0.25 |
| 1200~2000 | 0.33 | 0.36 | ||
| 2000~2500 | 0.48 | 0.5 | ||

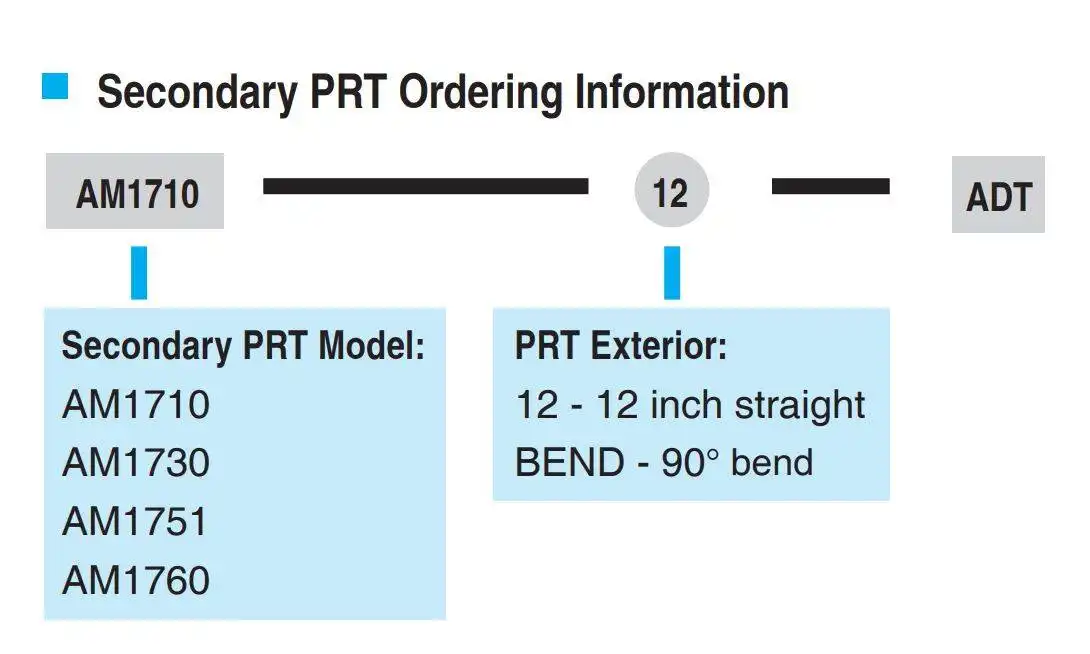

| Secondary PRT Information | ||||
|---|---|---|---|---|
| Specification | AM1710 Series | AM1730 Series | AM1751 Series | AM1760 Series |
| Temperature Range [3] | -60°C to 160°C | -200°C to 420°C | -200°C to 670°C | -200°C to 670°C |
| Resistance at 0°C | Nominal 100Ω | |||
| Temperature Coefficient | 0.003925 Ω / Ω / °C | |||
| Calibrated Accuracy (k=2)[2][3] | ±0.025°C at -40°C | ±0.025°C at -40°C | ±0.025°C at -40°C | ±0.010°C at -196°C |
| ±0.015°C at 0.01°C | ±0.015°C at 0.01°C | ±0.015°C at 0.01°C | ±0.006°C at 0.01°C | |
| ±0.025°C at 160°C | ±0.035°C at 420°C | ±0.035°C at 420°C | ±0.015°C at 420°C | |
| ±0.05°C at 661°C | ±0.025°C at 661°C | |||
| Drift | ±0.01°C at TPW after 100 hours at 160°C | ±0.01°C at TPW after 100 hours at 420°C | ±0.01°C at TPW after 100 hours at 661°C | ±0.004°C at TPW after 100 hours at 661°C |
| Short Term Stability | ±0.007°C | ±0.002°C | ||
| Thermal Shock | ±0.005°C after (10) thermal cycles from minimum to maximum temperatures | ±0.002°C after (10) thermal cycles from minimum to maximum temperatures | ||
| Hysteresis | <=0.005°C | <=0.001°C | ||
| Self-heating | 50 mW/°C | 0.0015°C at 0.5mA | ||
| Response Time | 9 seconds for 63% response to step change in water moving at 3 feet per second | |||
| Measurement Current | 0.5 mA or 1 mA | |||
| Sensor Length | 32 mm | 42 mm | ||
| Sensor Location | 5 mm from tip | |||
| Insulation Resistance | >1000 MΩ at room temperature | |||
| Sheath Material | Stainless Steel | Inconeltm | ||
| Dimension | AM1710-12-ADT | AM1730-12-ADT | AM1751-12-ADT | AM1760-12-ADT |
| 0.25 in dia X 12 in (6.35 mm X 305 mm) | 0.25 in dia X 12 in (6.35 mm X 305 mm) | 0.25 in dia X 12 in (6.35 mm X 305 mm) | 0.25 in dia X 12 in (6.35 mm X 305 mm) | |
| AM1710-BEND-ADT | AM1730-BEND-ADT | AM1751-BEND-ADT | AM1760-BEND-ADT | |
| 0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 7.4 inch (190 mm) from probe end | 0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end | 0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end | 0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end | |
| External Leads | Teflontm –insulated copper wire, 4 leads, 0.8 meters | |||
| Handle Dimension | 15 mm (OD) x 65 mm (L) | |||
| Handle Temperature Range[1] | -50°C to 160°C | -50°C to 180°C | ||
| Calibration | NIST traceable calibration with data included. Accredited calibration available per request. | |||
| [1] Handle temperatures outside this range will cause damage to the probe. | ||||
| [2] Includes calibration and 100 hour drift. | ||||
| [3] Probe calibration ranges may differ from probe temperature ranges (see Calibrated Accuracy for calibration ranges). | ||||
| *PRT Information from www.accumac.com | ||||
| Accessories (Included) | ||
|---|---|---|
| Model | Description | QTY |
| 9813-X | Power Adapter, external power adapter for Additel 282 Thermometer Readout | 1 pc |
| 9052 | USB Cable type A to type C | 1 pc |
| 9704 | Chargeable Li-ion battery | 1 pc |
| ISO 17025 accredited calibration certificate | 1 pc | |
| Optional Accessories | |
|---|---|
| Model | Description |
| 9070 | Smart connector for reference PRT used with ADT875, ADT878, and ADT282 |
| 9071 | Connector Adapter from smart connector to 4-wire with gold-plated spades for AM17XX PRTs |
| 9072 | Smart connector with clamps |
| 9080 | Cable kits (including TC plug, compensation cable, S,R,B,K,J,T,E,N) |
| 9918-SC | Soft carrying case, with space for instrument, test leads, and accessories |
| 9905 | Carrying case for handheld calibrators and readouts with space for two PRTs |
* See Specifications for information regarding common probes used with the ADT282.
