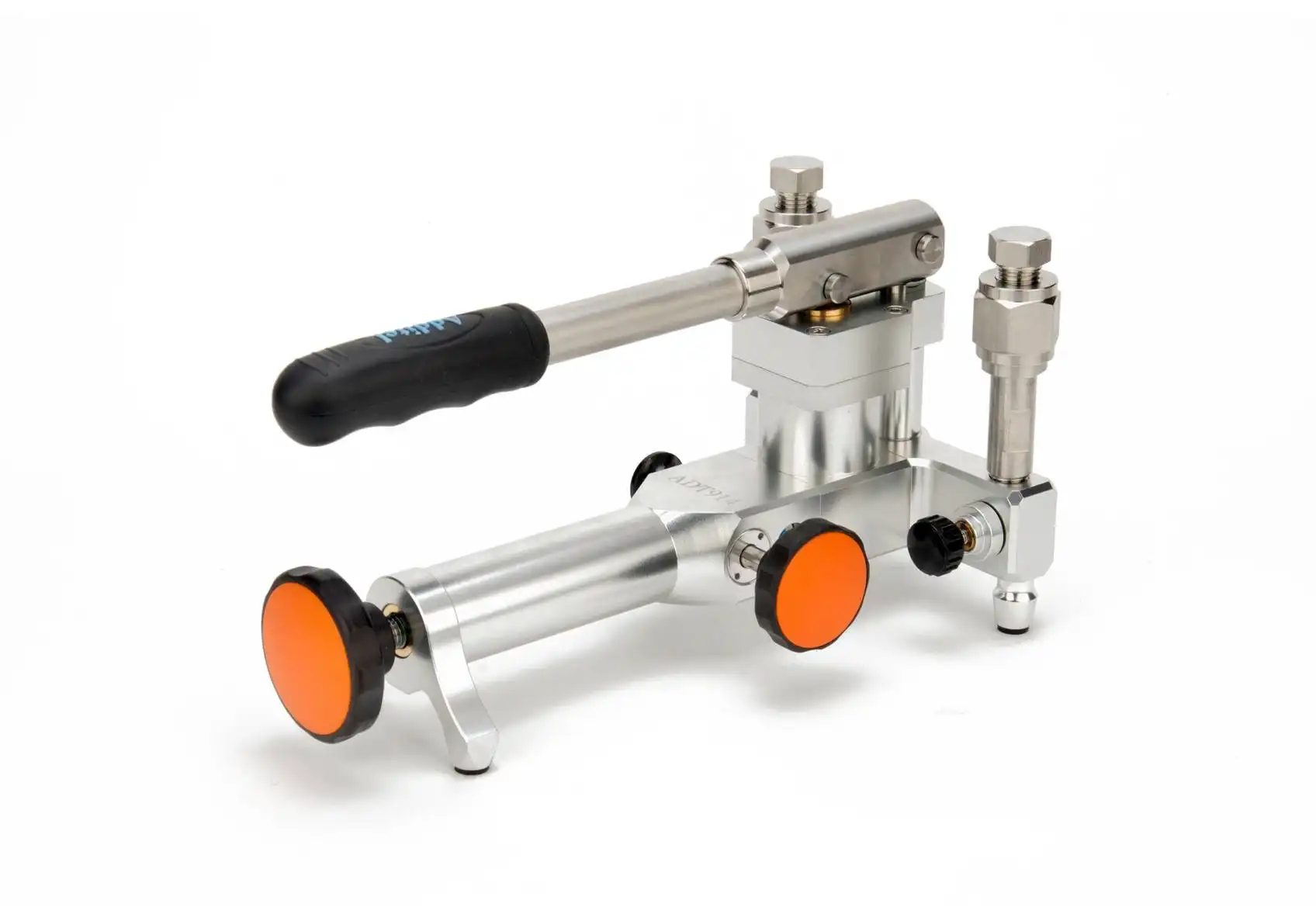

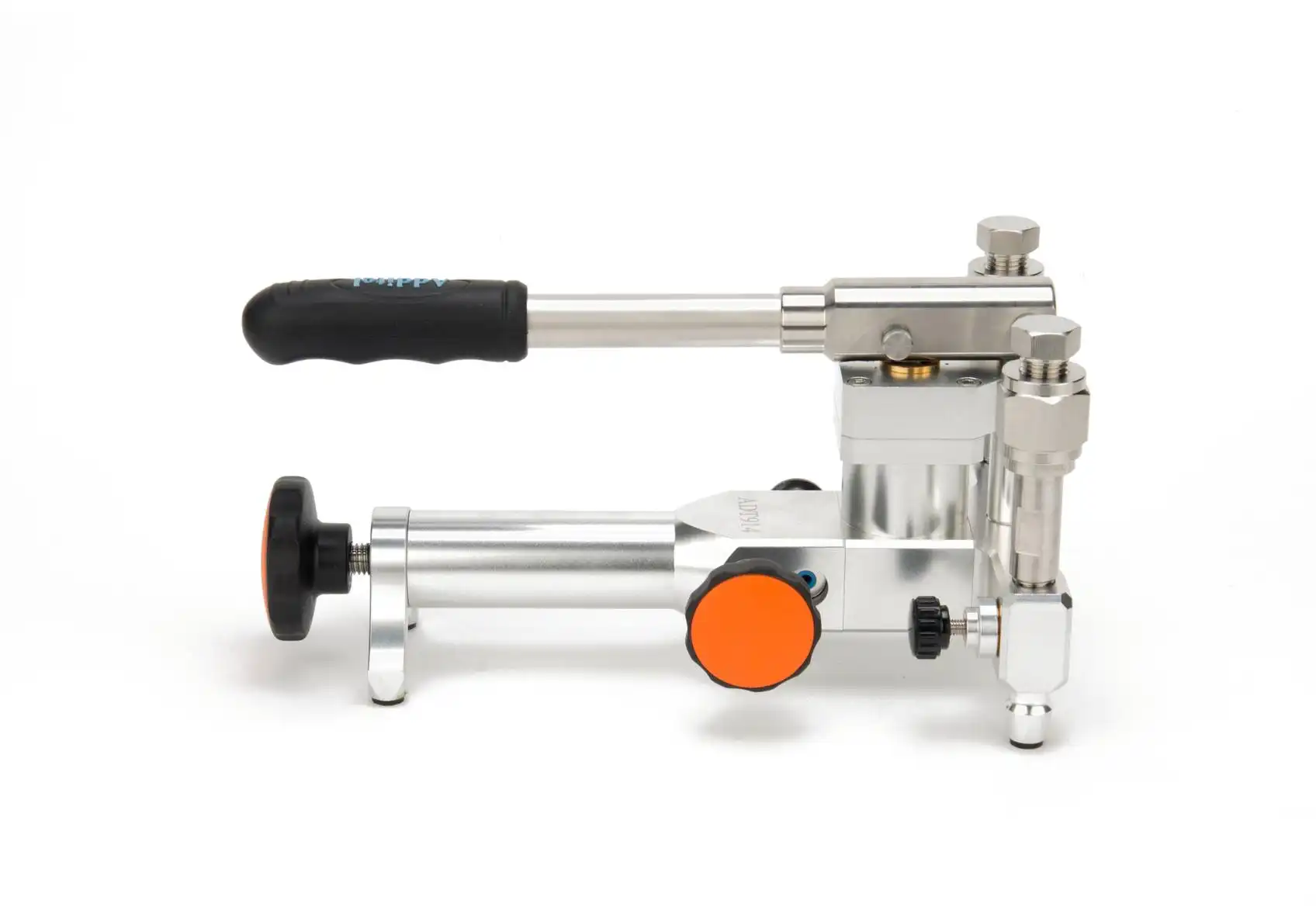

Additel 914A
Handheld Pneumatic Pressure Test Pump
- Portable, only 3.3 lb
- Great stability and high resolution
- Minimal maintenance
- Hand-tight quick connectors
The 914A Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95% vacuum to 375psi (25bar). A high-quality screw press is designed for fine pressure adjustment
Portable: Only 3.3 lb (1.5 kg)
Adjustment Resolution
10 Pa (0.1 mbar)
High-quality screw press for fine pressure adjustment
Great Stability
A specially designed shut-off valve makes the
pressure as stable as possible during calibration
Durable and Minimal Maintenance
Built-in gas-liquid isolator protects the pump from
moisture and dirt
Easy-to-use
Hand-tight Quick Connectors
Allows easy connecting and disconnecting to the test
pump without the need for PTFE tape or wrenches
| Specifications | |
|---|---|
| Media | Air |
| Generated Pressure Range | 95% vaccum to 375 psi (25 bar) positive pressure |
| Adjustment Resolution | 10 Pa (0.1 mbar). |
| Material | Ram/adapters: SS |
| Body: SS, aluminum | |
| Seals: Buna-N, PTFE, Copper Alloy | |
| Piston Volume | 21 ml (1.3 in3 ) |

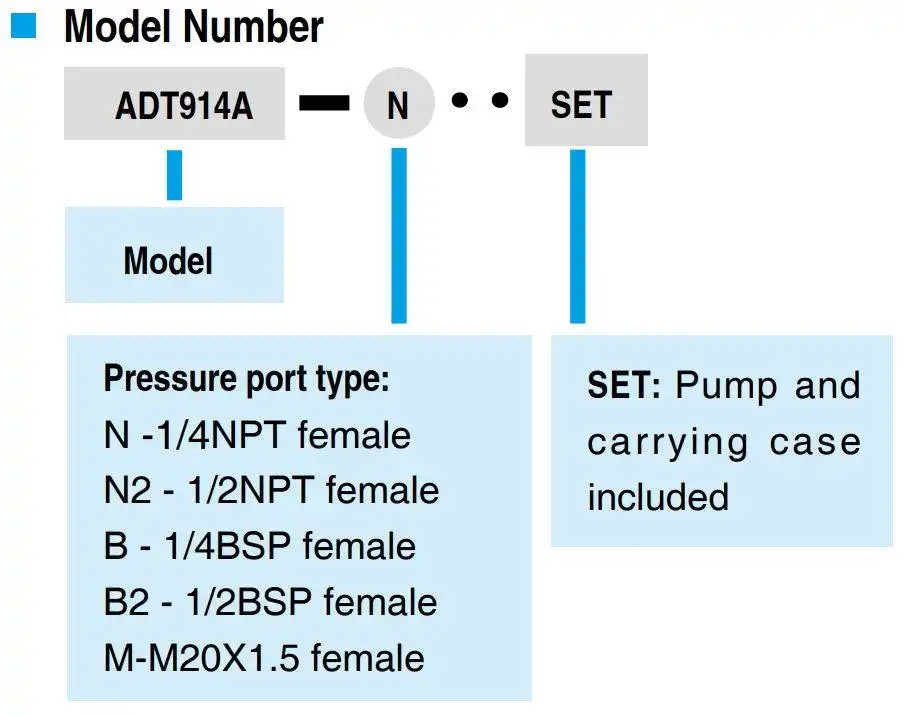

| Connection | Hand-tight connectors for both test gauge and reference gauge. 1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female |
| Dimensions | Height: 5.12'' (130 mm) |
| Base: 9.45'' (240 mm) x 4.72'' (120 mm) | |
| Weight | 3.3 lb (1.5 kg). |
| Warranty | 1 year |
| Accessories Included |
|---|
| O-ring: 20 pcs |
| Manual: 1 pc |
| Carrying Case (914A-X-SET models only) |
| Optional Accessories | |
|---|---|
| Model Number | Description |
| ADT102 | Adapters and fittings, 1/4NPT male to various male and female connection (25 pcs). |
| ADT103 | Adapters and fittings, 1/4NPT (1/2NPT, 1/4BSP, 1/2BSP, or M20X1.5) male to various female hand-tight quick connectors (10 pcs). |
| ADT100-HTK-8K | Hose test kit, 5 feet flexible hose, 8,000 psi, user selectable male (1/4NPT, 1/2NPT, 1/4BSP, 1/2BSP, M20) to user selectable female hand tight quick connector. |
| 9901-914 | Carrying Case for one ADT914A pump and two ADT681 gauges or ADT672 calibrators |
| ADT914A-MK | Maintenance kit for Additel 914A pump |
| 9240 | Differential pressure gauge holder |
| Note: For oil free applications contact Additel. | |
