Additel 959A
Hydraulic Ultra-High Pressure Test Pump
- Pressurize large-volume workload
- Generate pressure to 40,000 psi (2,800 bar) pressure
- Increase and decrease pressure smoothly
- Three pressure ports
The Additel 959A is designed to generate pressure up to 40,000 psi (2,800 bar) for the application requiring accurate pressure testing and calibration. It can be used in calibrating pressure gauges, transmitters, or other pressure measuring instruments.
Generate Ultra-high Pressure
Generate pressure up to 40,000 psi (2,800 bar)
Hand pump to fill large volume systems
Durable and Minimal Maintenance
Isolation valve provides stable pressures while
reducing maintenance on the hand pump check valve
Easy-to-use
40,000 psi (2,800 bar) can be generated easily with
the dual-piston system
| Specifications | |
|---|---|
| Media | Oil |
| Generated Pressure Range | 0 to 40,000psi (2,800bar) gauge pressure. |
| Material | Ram/adapters: SS |
| Body: SS, aluminum, copper | |
| Seals: Buna-N, PTFE, Copper Alloy, Aluminum Alloy | |
| Connection | Test Gauge Connection: Positional Autoclave F-250-C, 9/16" - 18 UNF female |
| Reference Gauge Connection: Positional Autoclave F-250-C, 9/16" - 18 UNF female | |
| 1/2BSP female and M20X1.5 female connections are available upon request. | |
| Dimensions | Height: 6.9" (175 mm) |
| Base: 17.9" (455 mm) x 15.0" (380 mm) | |
| Weight | 28.7 lb (13 kg). |
| Warranty | 1 year |
| Piston Volume | Fine adjust piston: 1.5 ml (0.09 in^3) |
| Accessories Included |
|---|
| Diethylhexyl Sebacate: 1 bottle (250 ml) |
| Manual: 1 pc |
| Carrying case (959-X-SET models only) |
| Optional Accessories | |
|---|---|

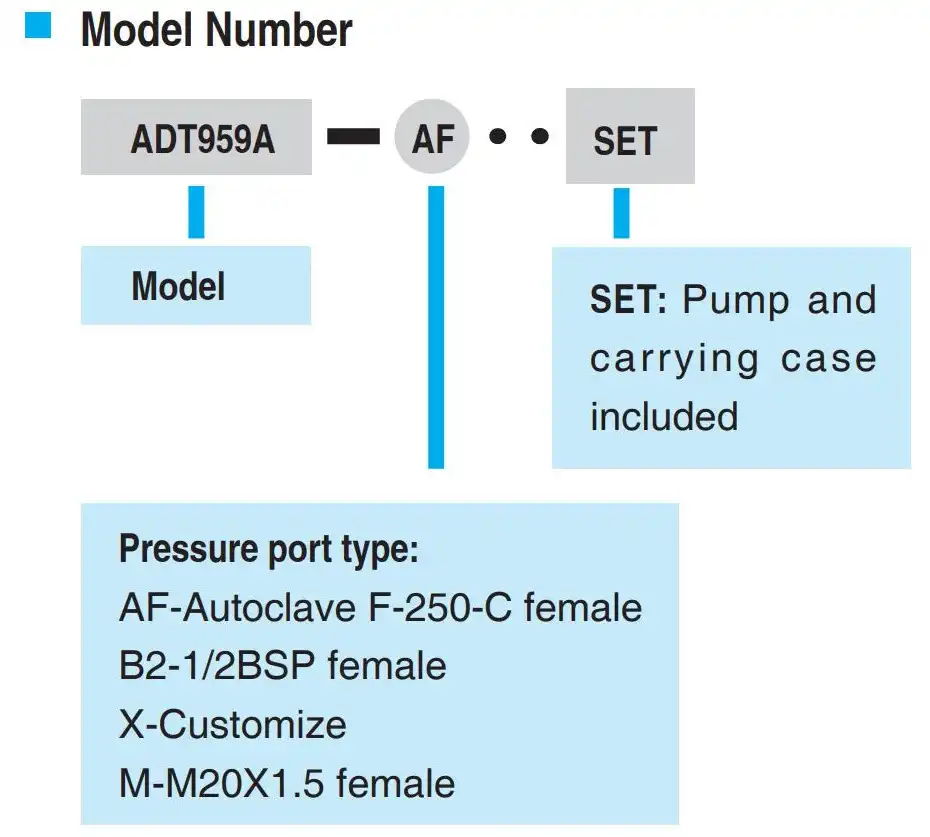

| Model Number | Specifications |
| 9201 | Oil, Diethylhexyl Sebacate, 1 liter (1 quart) |
| ADT104 | Adapters and fittings, 1/4HP male to various male and female connectors (17 pcs). |
| ADT959-MK | Maintenance kit for Additel 959A pump |
| ADT100-959-HK | Hose Kit, External Reservoir Expansion Hose Kit for ADT959A |
| 9910 | Carrying case for Additel 946A, Additel 959A or Additel 960 |
