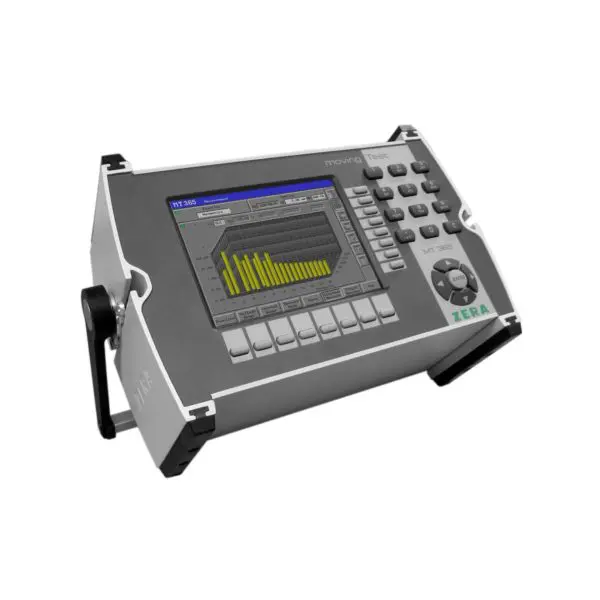

MT365

Portable Reference Meter
Phases: 3
Accuracy class: 0.1

Phases	3
Accuracy Class	0.1
Current Measurement Max.	12 A (direct measurement) 30000 A (via special current clamps)
Voltage Measurement Max.	300 V
Display	6.5" Coloured
Main Functions	Actual values, vectorial and curve display Error measurement Measurement of harmonics up to the 40th
Scope of Application	On-site measurement with system load
Specials	Also available as CAT IV device Automatic measurement (optional - only in combination with a ZERA source) Burden measurement for CT/VT Energy dosage (optional) Selective power measurement (optional) U-/I-transformer testing
